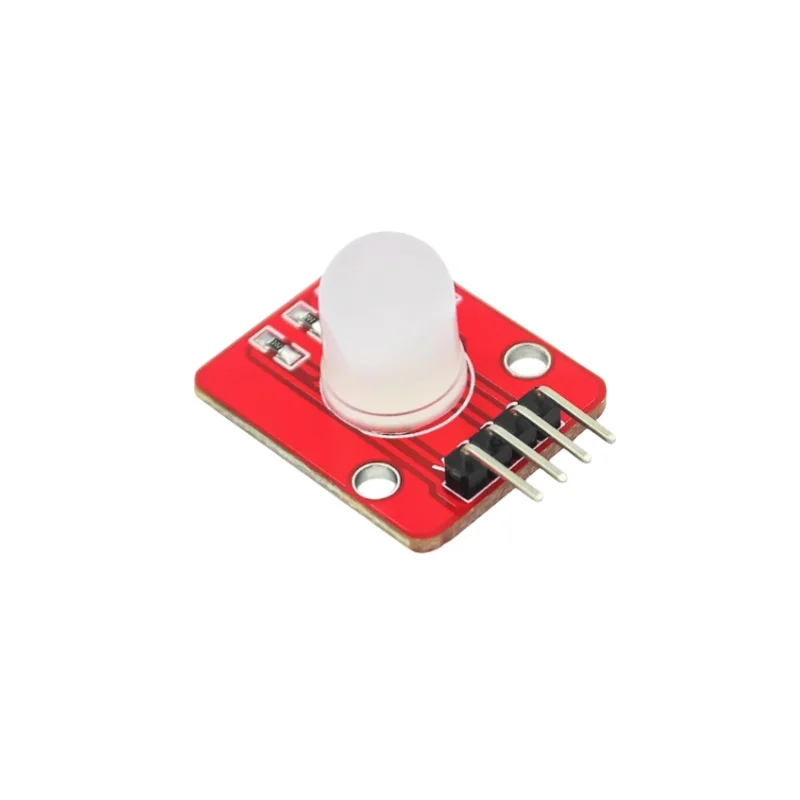

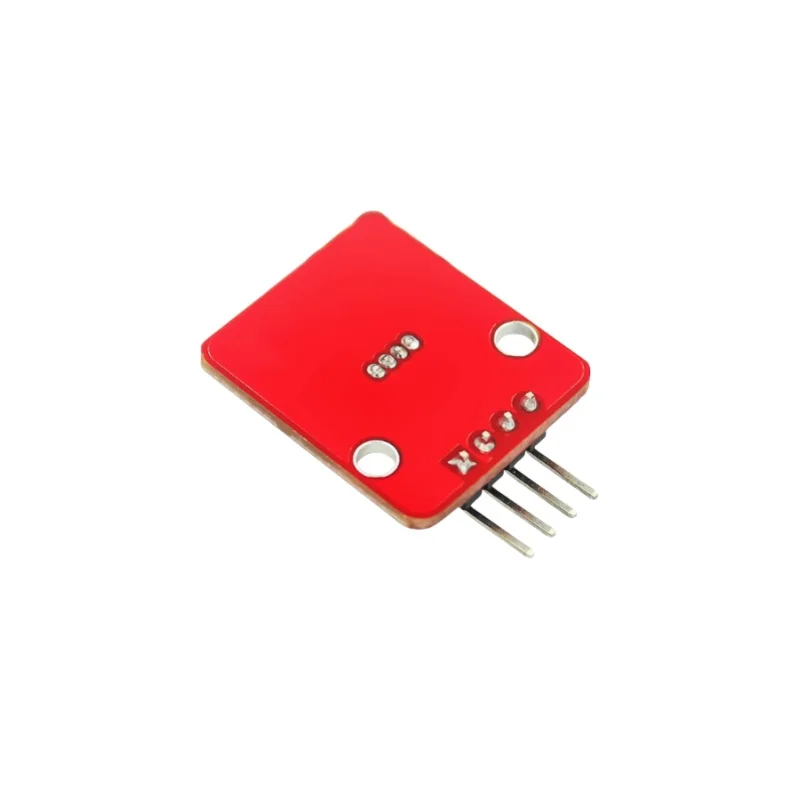

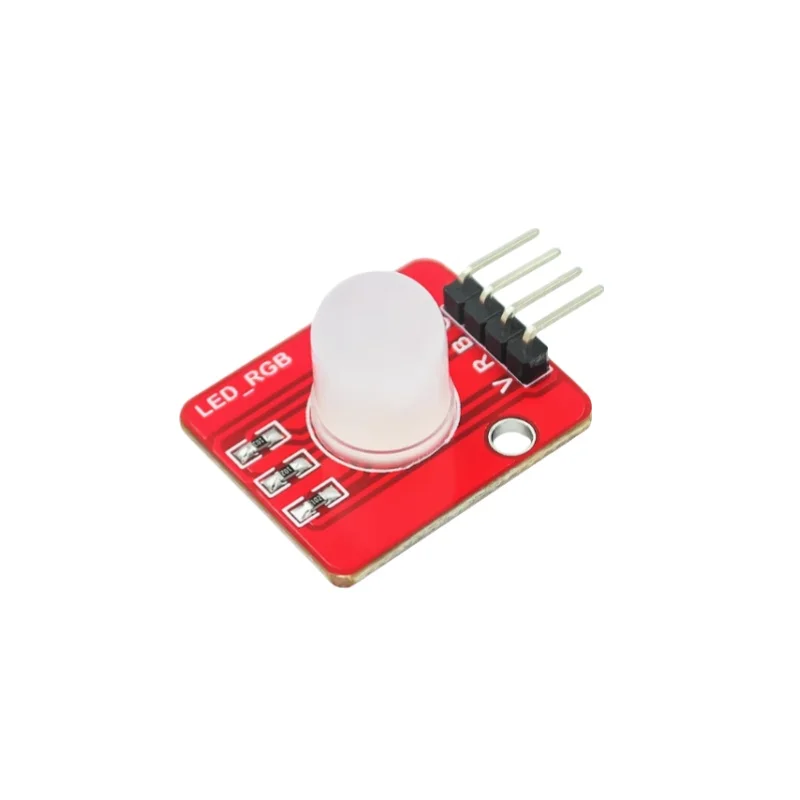

RGB Full Color LED Module Electronic Building Block 5V Compatible With Three Color 10mm High brightness

Description

I. Product parameters:

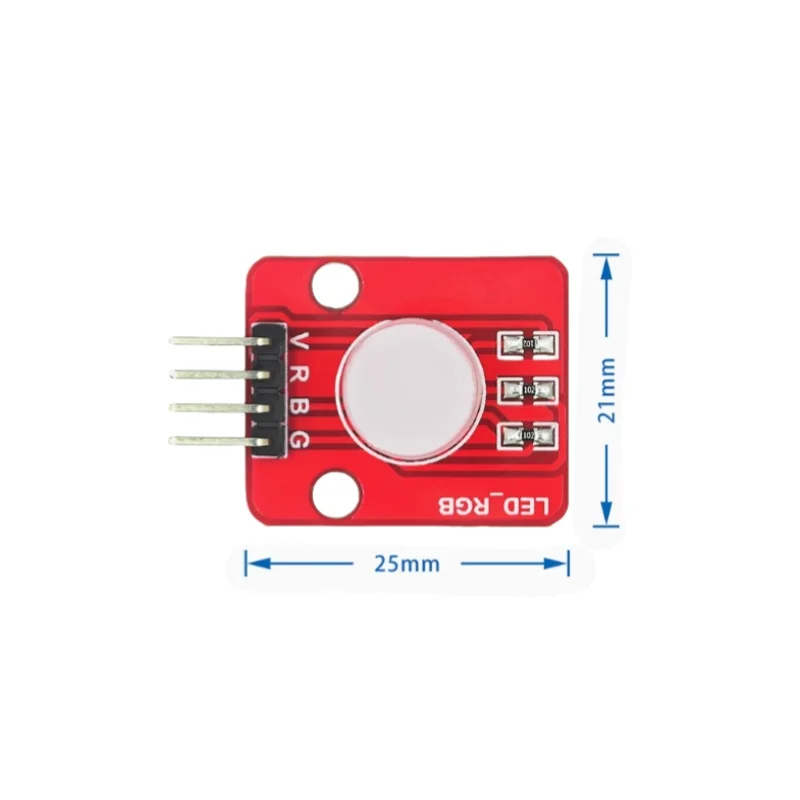

Size: 25*21mm

Weight: 4g

Color: Full color red, green and blue

Brightness: Highlight

Voltage: 5V

Input: Digital level

Interface: Arduino 4P interface

Platform: development board, MCU

Ii. Product features:

The principle of three primary colors displays multiple colors

Full color display is realized by PWM port control

The PWM interface can be driven directly

Test the code:

int redpin = 11; //select the pin for the red LED

int bluepin =10; // select the pin for the blue LED

int greenpin =9; // select the pin for the green LED

int val;

void setup() {

pinMode(redpin, OUTPUT);

pinMode(bluepin, OUTPUT);

pinMode(greenpin, OUTPUT);

Serial.begin(9600);

}

void loop()

{

for(val=255; val>0; val--)

{

analogWrite(11, val);

analogWrite(10, 255-val);

analogWrite(9, 128-val);

delay(1);

}

for(val=0; val<255; val++)

{

analogWrite(11, val);

analogWrite(10, 255-val);

analogWrite(9, 128-val);

delay(1);

}

Serial.println(val, DEC);

}
