Description
- Brand Name: Erilles
- High-concerned chemical: None
- Origin: Mainland China
- Output: Digital Sensor
- Theory: Resistance Sensor
- Type: Optical-Electronics Sensor
- is_customized: Yes
- Use: Pressure Sensor
- Material: Polymer

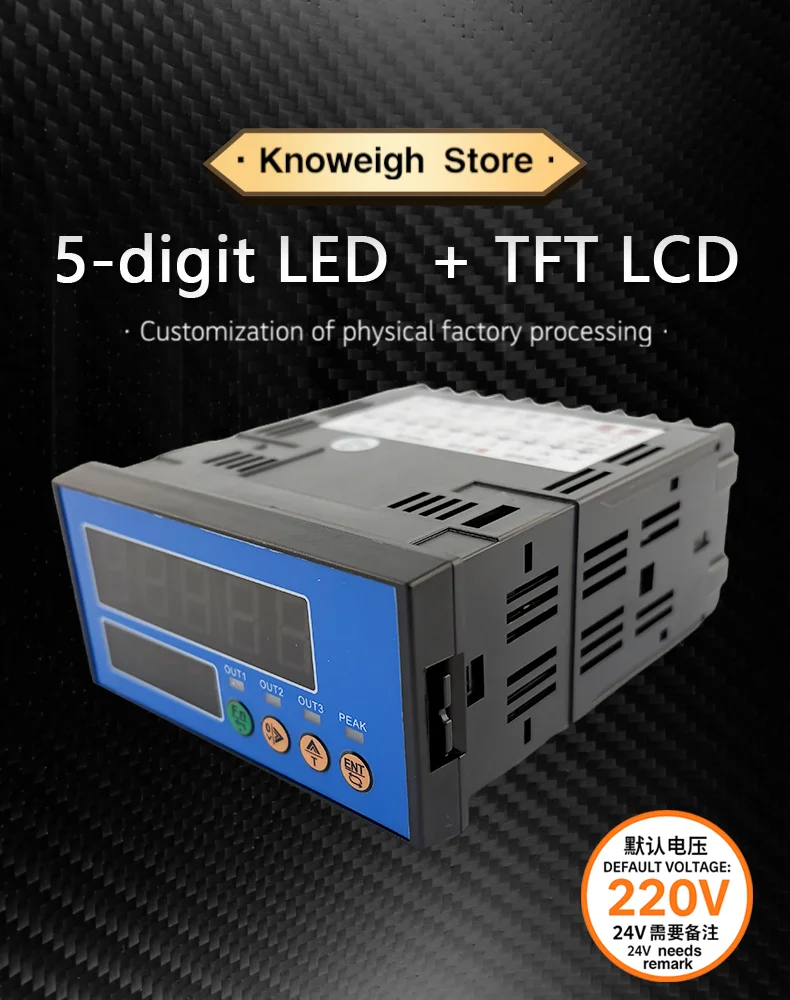

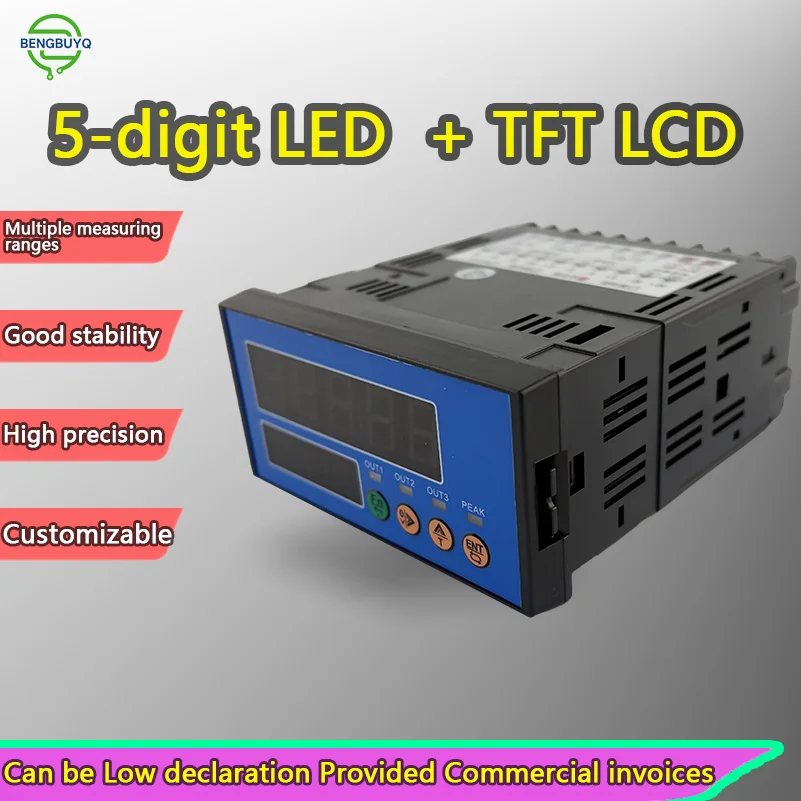

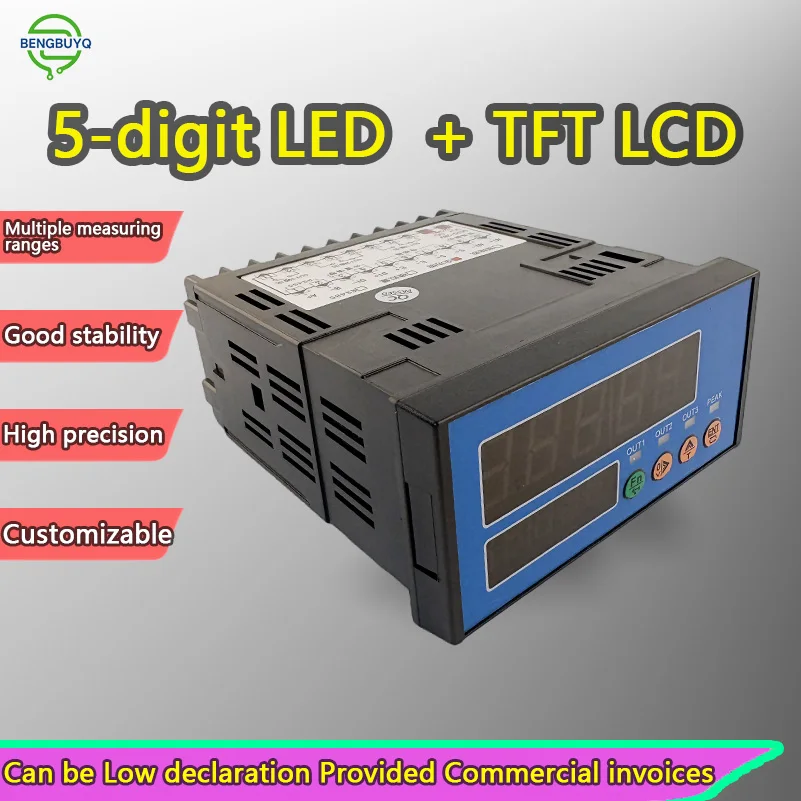

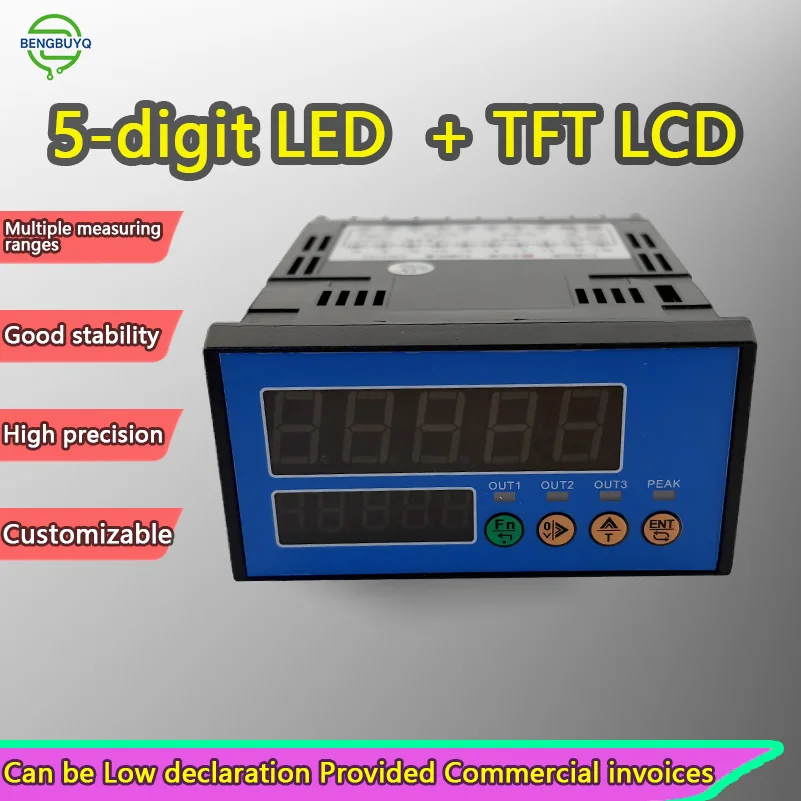

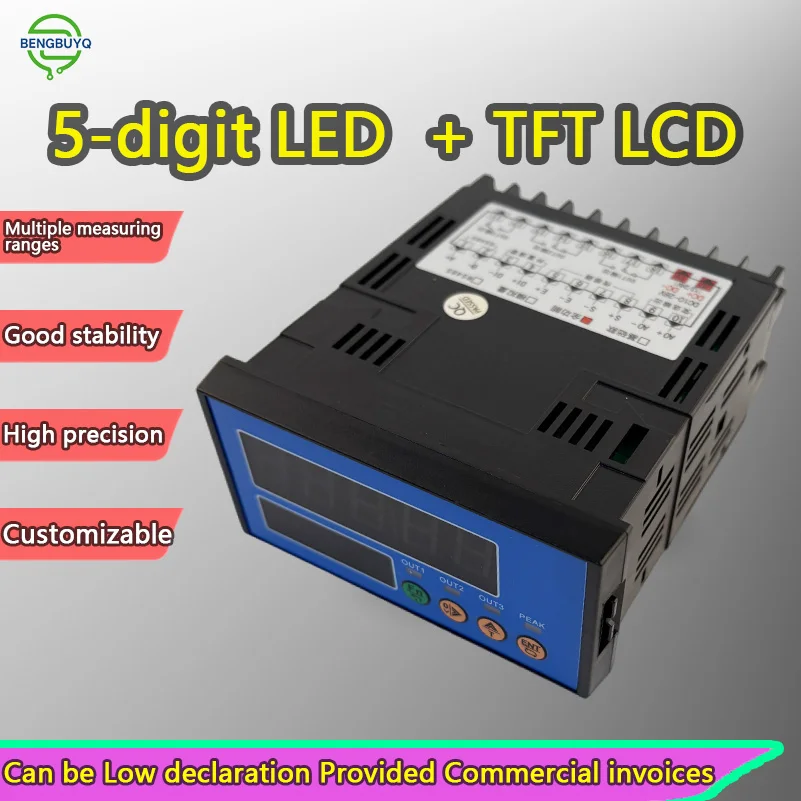

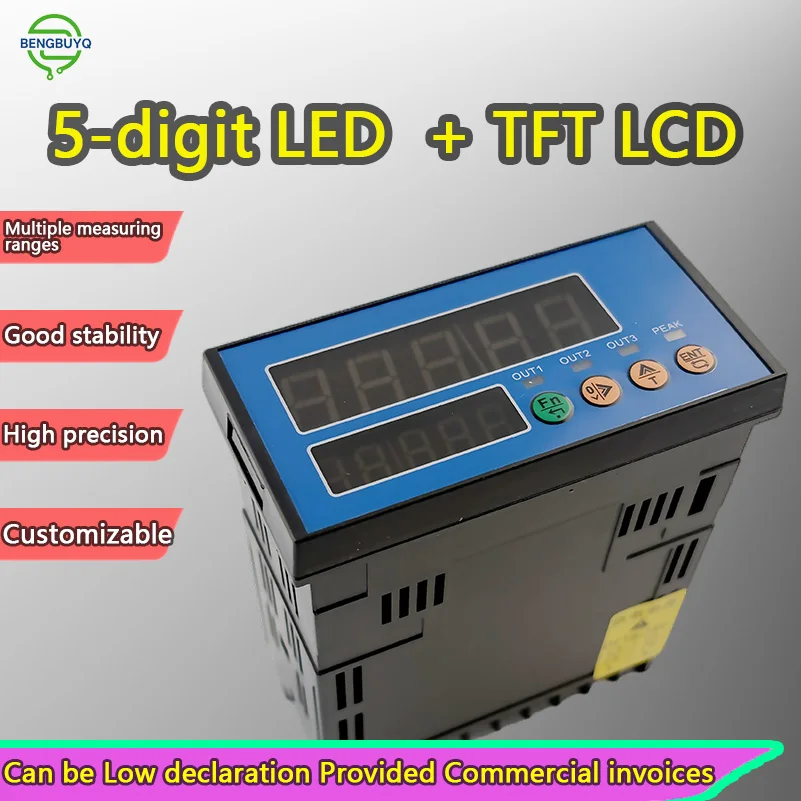

- Display: 5-digit LED (net weight) +
- Display: TFT LCD (parameters, gross weight, peak, un
- Power Supply: DC 10-28V
- Power Supply: AC 85-265V(100-240V, 50/60Hz)
- Signal Range: 0.5 - 3.0 mV/V
- Excitation Voltage: 5V
- Sampling Rate: Adjustable 10 / 40 / 640 / 1280 Hz
- Internal Resolution: 1/1,000,000
- Display Resolution: 1/100,000
- Nonlinearity: 0.005% F.S
- Max Power Consumption: 5W
- Operating Temperature: -25℃ to +45℃
- Relative Humidity: <85% RH
- Weight: Approx. 300g
- Dimensions: 96 X 48 X 110 mm
- Panel Cutout: 92 X 46 mm
- Choice: yes
- semi_Choice: yes
|

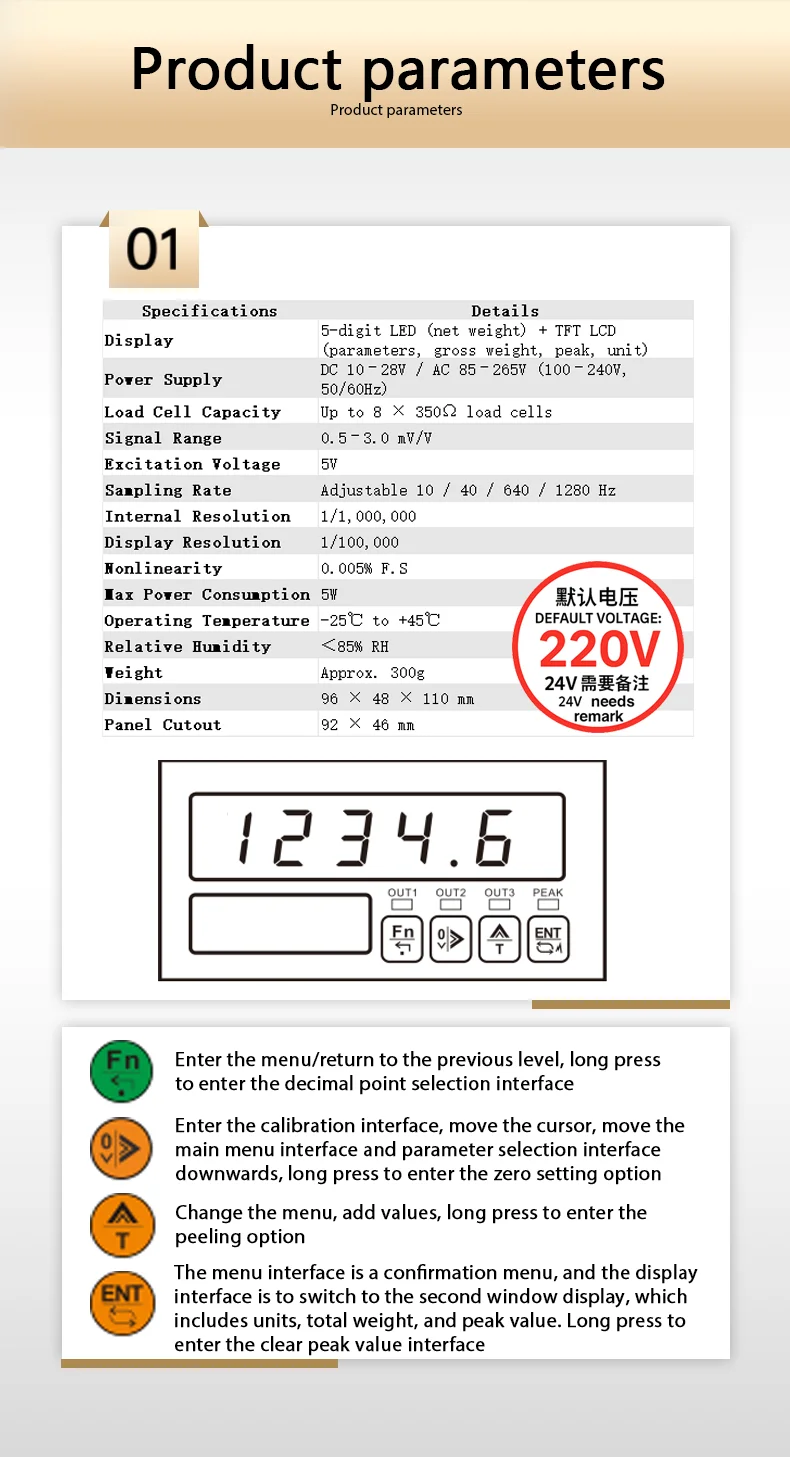

Specifications (English) |
|
Display: 5-digit LED (net weight) + TFT LCD (parameters, gross weight, peak, unit) |
|
Power Supply: DC 10–28V / AC 85–265V (100–240V, 50/60Hz) |
|
Load Cell Capacity: Up to 8 × 350Ω load cells |
|
Signal Range: 0.5–3.0 mV/V |
|
Excitation Voltage: 5V |
|
Sampling Rate: Adjustable 10 / 40 / 640 / 1280 Hz |
|
Internal Resolution: 1/1,000,000 |
|
Display Resolution: 1/100,000 |
|
Nonlinearity: 0.005% F.S |
|
Max Power Consumption: 5W |
|
Operating Temperature: -25℃ ~ +45℃ |
|
Relative Humidity: ＜85% RH |
|
Weight: Approx. 300g |
|
Dimensions: 96 × 48 × 110 mm |
|
Panel Cutout: 92 × 46 mm |
|
Output Options (Optional): Analog output (current/voltage), RS485 communication (Modbus-RTU), 3 relay alarm outputs |
Model | Function Description
-
Base Model: Dual 5-digit display, 3 relays, 1 switch input
-
Analog Output Version: Base model + Analog output (0–5V, 0–10V, 0–5–10V, 0–20mA, 4–20mA, 4–12–20mA)
-
RS485 Version: Base model + RS485 output
-
Full-function Version: Base model + Analog output + RS485 output
