Description
- Brand Name: NoEnName_Null
- High-concerned chemical: None
- Origin: Mainland China
- Theory: Latching Relay
- Voltage: as details show
- Model Number: 02DC9FF600697
- Power Source: DC
- is_customized: No
- Contact Load: as details show
- Certification: None

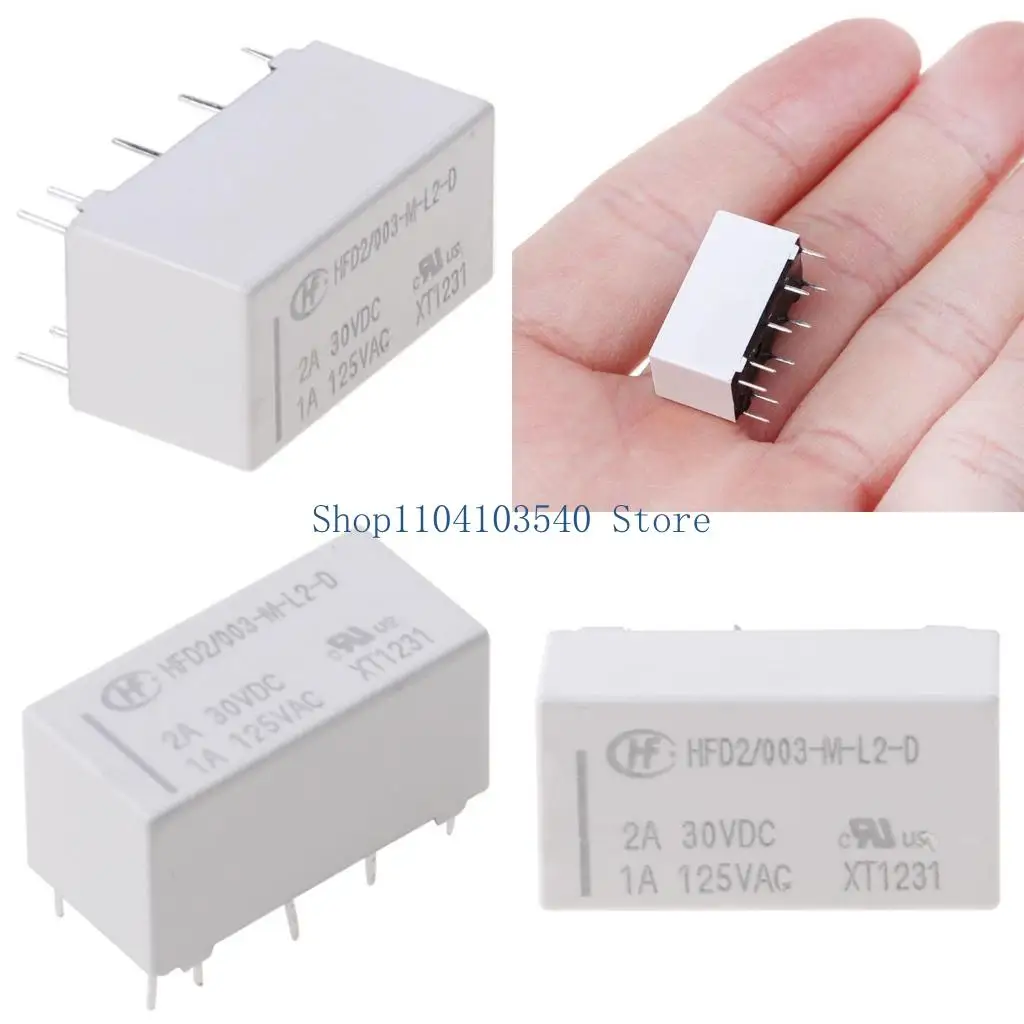

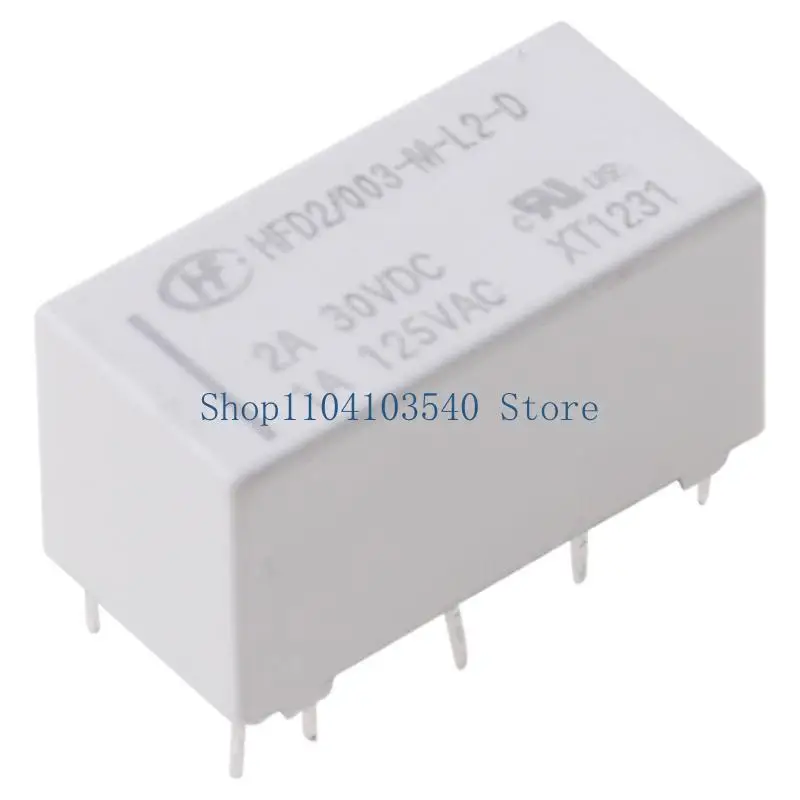

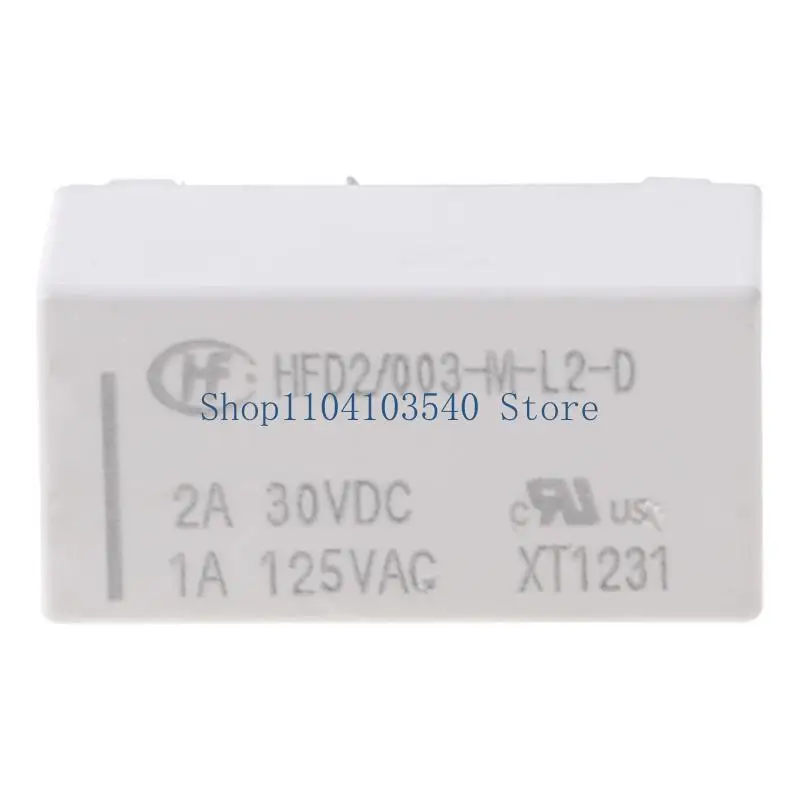

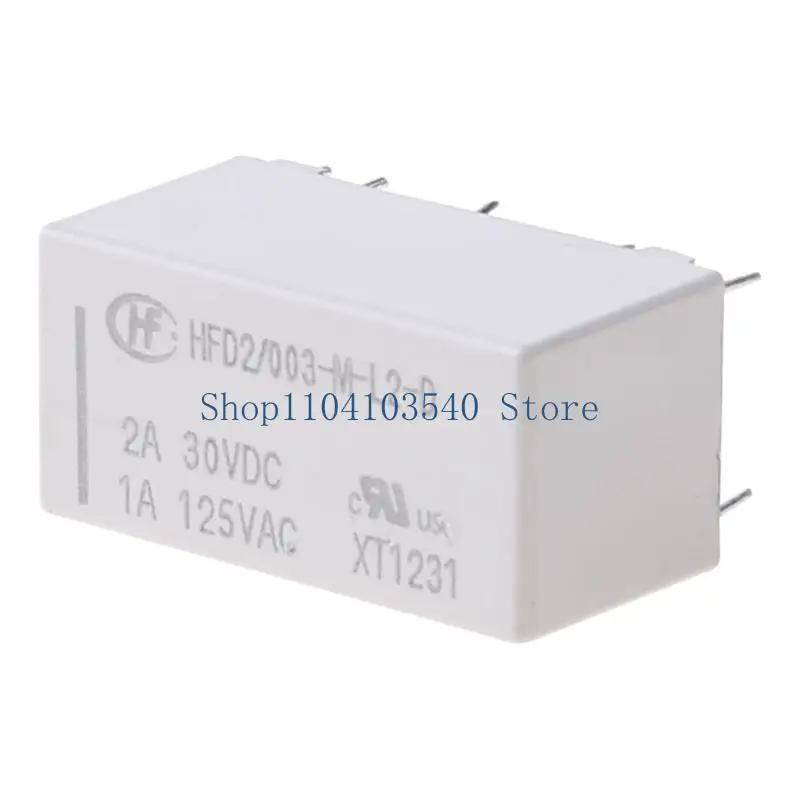

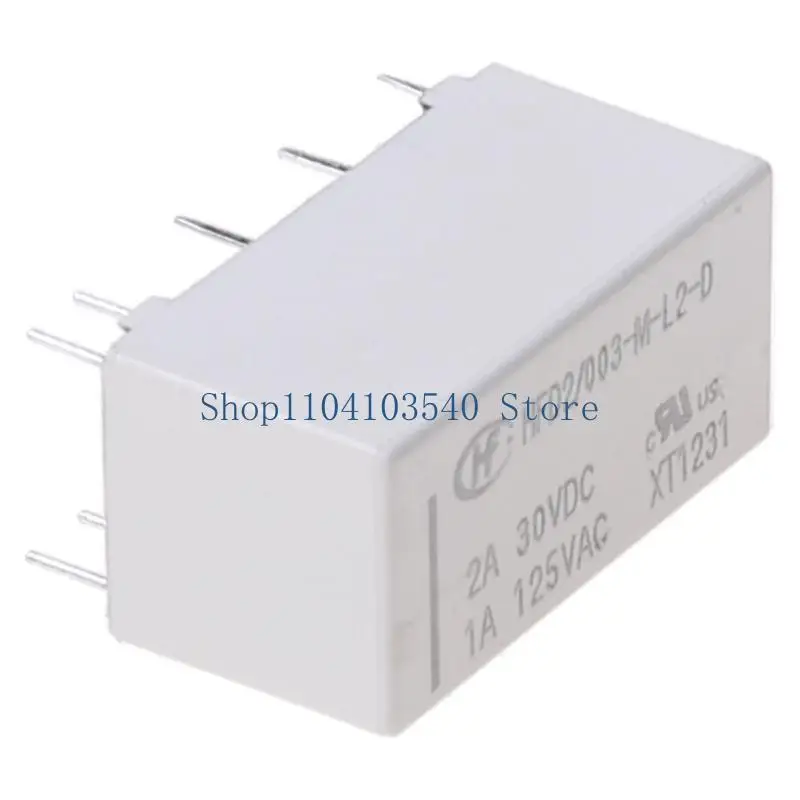

HFD2-003-M-L2-D 3V Coil Bistable Latching High Quality Home Improvement Subminiature Double Single Coil
OOTDTY
Description:
brand new and high quality
Features:
High sensitivity and coil power consumption of 150mW.
Double standard pinout.
In the form of a bifurcated contact.
Performance parameter:
Contact form: 2Z
for Touch resistance ≤100mp (10mA 30mvDc)
Contact load (resistive) 1A 125VAC. 2A 30VDC 3A 30VDC
Maximum switching 250VAC / 220VDC, maximum switching current 3A
Maximum switching power 125VA / 90W
Minimum application load 10mv 10μA
Insulation resistance: 1000MΩ (500VDC)
Dielectric Withstanding Between coil and contact: 1500VDC1min (single coil), 1000VDC1min (double-line diagram)
Between contacts and contacts: 1000VDC 1min
Operating for time (under rated ≤4.5ms
Release for time (under rated ≤3.5ms
Operating for time holding type): ≤4.5ms
Reversion for time hold type): ≤4.5ms
Temperature 40 ℃ -85 ℃
Humidity: 5% ~ 85% RH
Vibration: 10Hz ~ 55Hz 1.5mm double amplitude
Impact: stability 490m / s, strength 980m / s

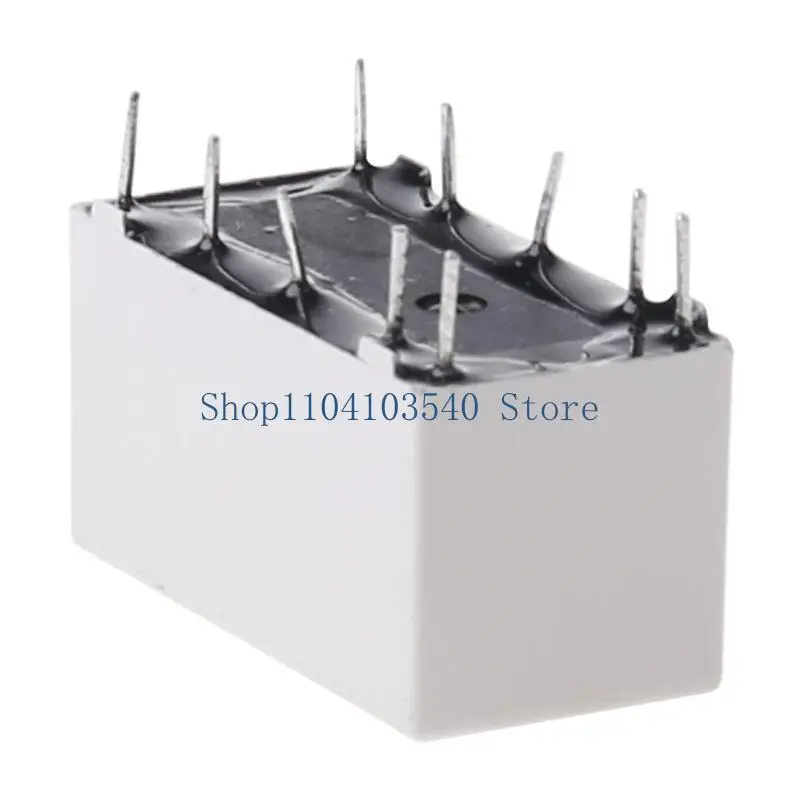

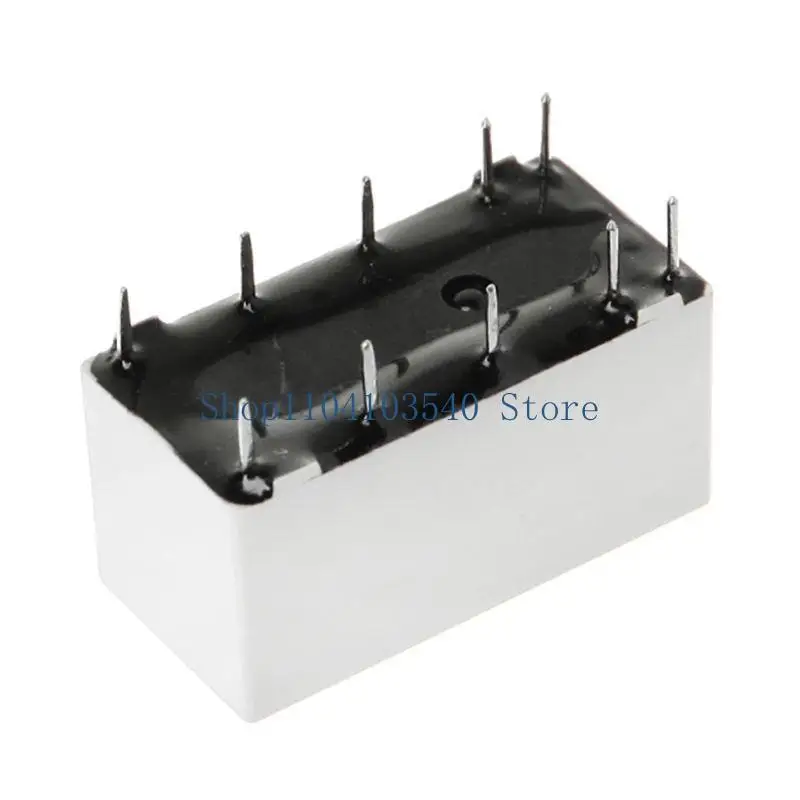

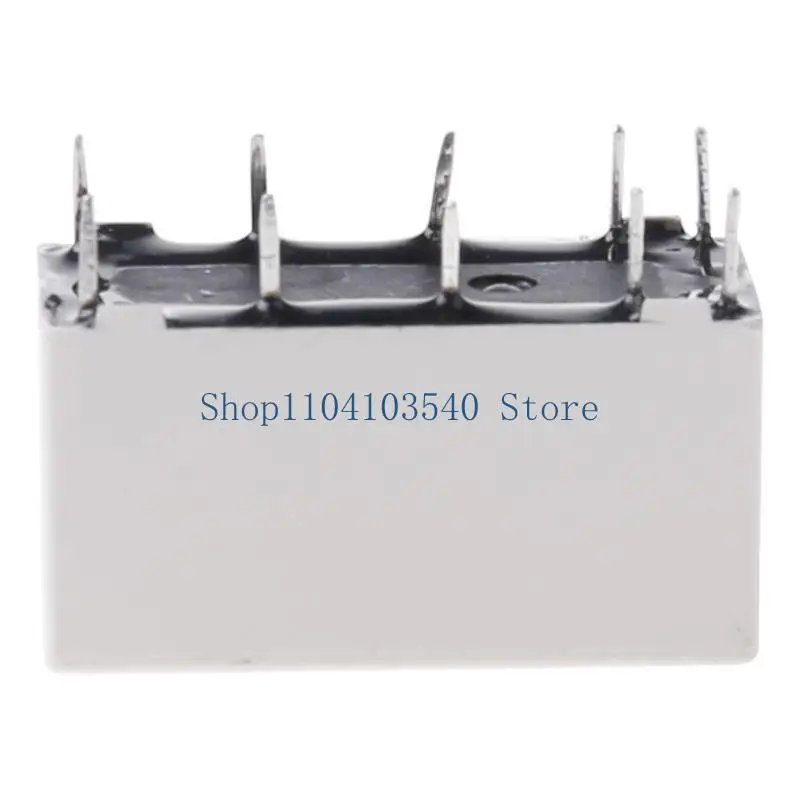

Terminal method: Printed board (DIP)
Specification:
Type: Latching
Material: Plastic
Features:
Latching Coil Bistable, Subminiature, High Quality, Home Improvement, Single Coil

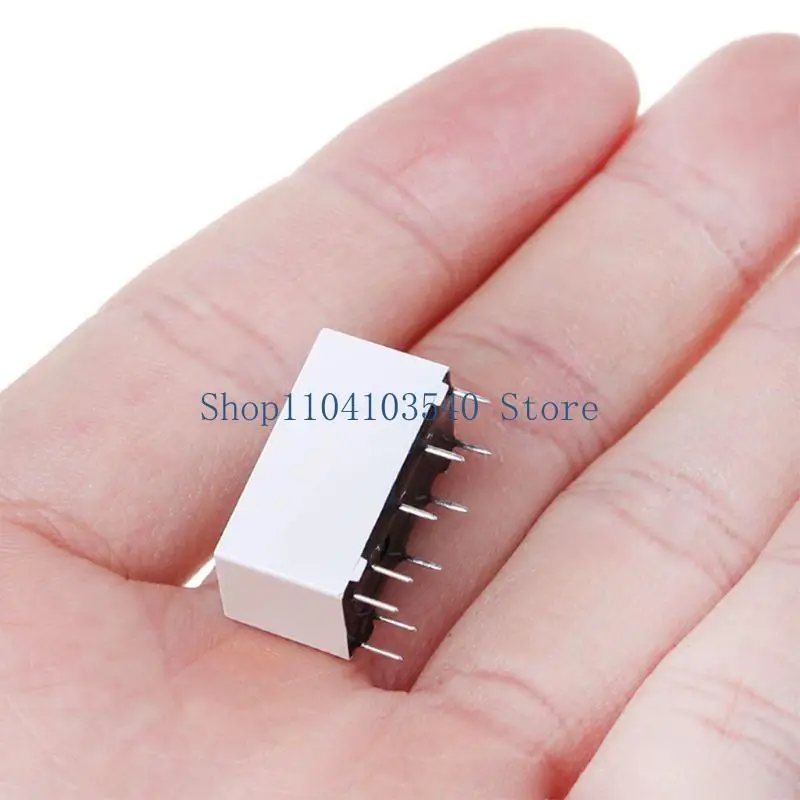

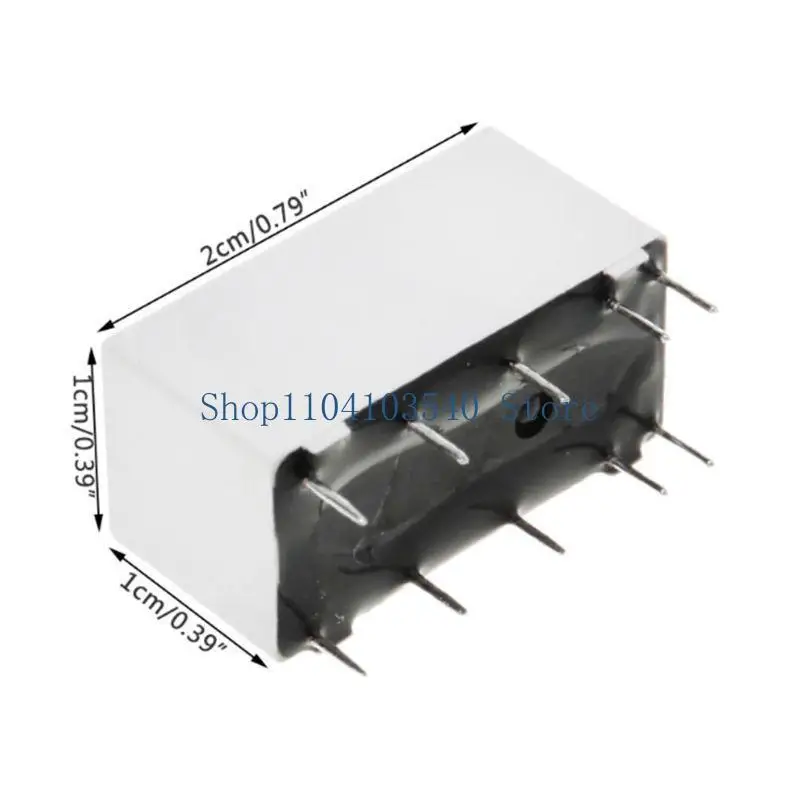

Dimension: app.2x1x1cm/0.79x0.39x0.39in
Color: White
Quantity: 1 Pc
Note:
1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
1 Pc x Latching
